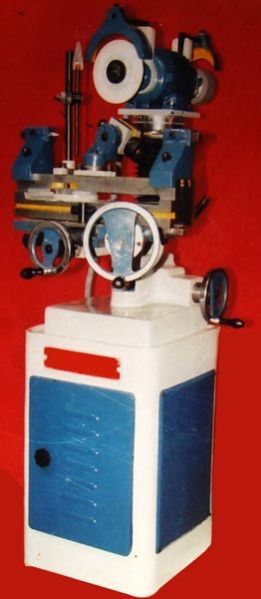

Tool Cutting Grinder (Model-600)



We offer power saving and low maintenance Tool Cutting Grinder (Model-600), throughout India. We are one of the leading Tool Cutting Grinder manufacturer, exporter & Supplier. We offer precision engineered Tool Cutting Grinder that is fabricated with the highest level of perfection.



Technical Specifications

Admit Between Centres 16" 400mm
Swing Over Table 10" die 250mm
Table Dimensions 24" x 6" 600 x 150mm
Longitudinal Travers 10" 250mm
Cross Travers 6" 150mm
T-Slot Width 1/2" 12.5mm
Table Top to Grinding Spindle Centre Maximum 12" 200mm
Table Top to Grinding Spindle Centre Minimum 4" 75mm
Pillar 3½" x 18" 75 x 450mm
Table Swivel - -
Clock Wise 90o 90o
Anti Clock Wise 45o 45o
Motor Head Swivel 30o 360o
Motor (3440V) 1 H.P. 1 H.P.
Motor R.P.M. 2800 2800
Height of Cabinet Base 5½ ft. 1500mm
Weight ( Approximate) 500kg 500kg

Standard Equipments

Universal Work Hard Simple
Set Of Centre Head With Centre Simple
Lathe Tool Grinding Attachment Universal 360o
Universal Tooth Rest 360o
Wheel Dresser Attachment Simple
Dresser Attachment Simple
Tool Kit One
Adapter Nut Spanner One
Pressure Oil Can One
One
L/ Key 5/32" One
L/ Key 3/16" One
L/ Key 7/32" One
Spanner 1/2" x 5/8" One
Spanner 1/4" x 5/16" One
Spanner 5/16" x 3/8" One
Grinding Wheel Dish Shaped 6" x 1/4" x 1" Bore One
