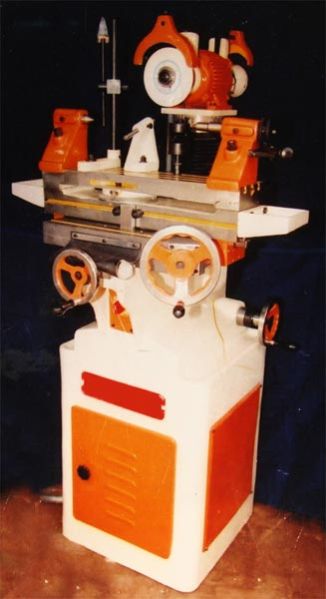

We hold expertise in manufacturer, exporter & Supplier premium Tool Cutting Grinder (Model-500) that is known for giving cutting edge performance. High performance Tool Cutting Grinder that we offer is produced with top grade components.
Technical Specifications
| Admit Between Centres | 12" | 300mm |
| Swing Over Table | 7" die | 175mm |
| Table Dimensions | 20" x 4" | 500 x 100mm |
| Longitudinal Travers | 9" | 225mm |
| Cross Travers | 4" | 100mm |
| T-Slot Width | 3/8" | 10mm |
| Table Top to Grinding Spindle Centre Maximum | 8" | 200mm |
| Table Top to Grinding Spindle Centre Minimum | 3" | 75mm |
| Pillar | 2½" x 12" | 62.5 x 300mm |
| Table Swivel | ||
| Clock Wise | 90o | 90o |
| Anti Clock Wise | 45o | 45o |
| Motor Head Swivel | 30o | 360o |
| Motor (3440V) | 1 H.P. | 1 H.P. |
| Motor R.P.M. | 2800 | 2800 |
| Height of Cabinet Base | 4½ ft. | 1350mm |
| Weight ( Approximate) | 350kg | 350kg |
Standard Equipments
| Universal Work Hard | Simple |
| Set Of Centre Head With Centre | Simple |
| Lathe Tool Grinding Attachment | Universal 360o |
| Universal Tooth Rest | 360o |
| Wheel Dresser Attachment | Simple |
| Dresser Attachment | Simple |
| Tool Kit | One |
| Adapter Nut Spanner | One |
| Pressure Oil Can | One |
| L/ Key 5/32" | One |
| L/ Key 3/16" | One |
| L/ Key 7/32" | One |
| Spanner 1/2" x 5/8" | One |
| Spanner 1/4" x 5/16" | One |
| Spanner 5/16" x 3/8" | One |
| Grinding Wheel Dish Shaped 6" x 1/4" x 1" Bore | One |
| Grinding Wheel Cup Shaped 4" x 2" x 1" Bore | One |
